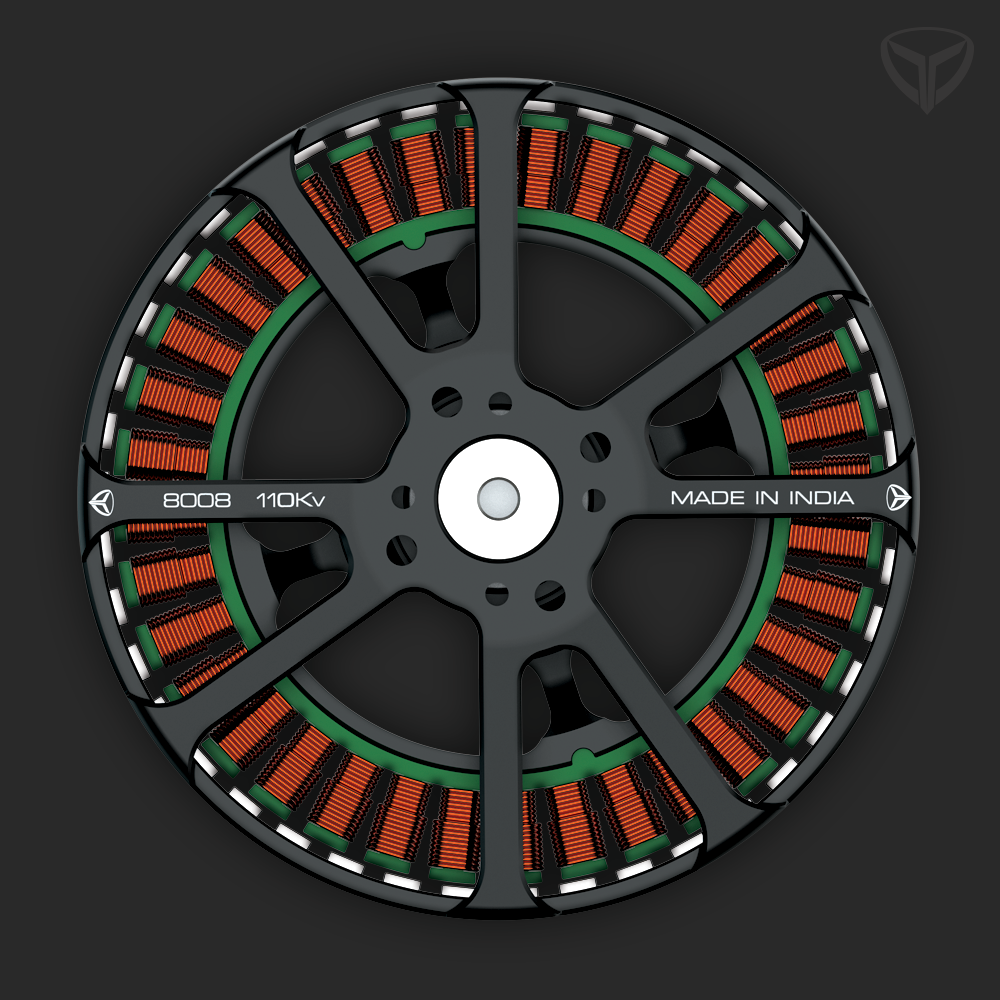

8008 SL

Sale priceRs. 25,000.00
In stock

  • Max Thrust: 8 Kg
  • Weight: 210 gms
  • IP Rating: IP45
  • Design Life: 1000 Hrs
  • Nominal Voltage: 24V to 48V (6S - 12S)
  • Propeller Compatibility: Upto 28 inches
  • Country of Origin: India
KV: 110 Kv

PRODUCT SPECIFICATIONS



Kv (Motor Velocity Constant)

110 RPM/V

Kt (Motor Torque Constant)

0.118 Nm/A @ 2973 rpm

Maximum Continuous Current*

14 A (180 s)

Maximum Continuous Power*

666 W (180 s)

Power Denisity

3.8 W/g (Rated), 5.2 W/g (Maximum)

Voltage Range

44V to 52V (12S LiHV)

Io (@48V)

2.0 A

Inductance per phase (Winding Inductance)

0.129 mH ( ≃0.03)

Rph (Wind Resistance per phase)

0.2 Ω ( ≃0.03)

Stator Poles

36S(36S42P)

Magnetic Poles

42P(36S42P)

Bearings

Dual, 619/8-2Z (SKF)

Stick Out Shaft Diameter

ø8 mm

Motor Diameter

ø88.4 mm

Motor Length

26 mm

Motor Weight

210g

Mount Pattern @ 90 deg

4xM3 ø30mm ↧5mm

Propeller Blade Size*

Max Propller Size - 28inch

Propeller Mount Pattern

4xM4 ø23mm ↧5mm

4xM3 ø20mm ↧5mm





Propeller

Voltage

PWM

RPM

Thrust (g)

Torque (N*m)

Current (A)

Electrical Power

Efficiency

Temperature (Celcius)

Nautical Wings

26"

Carbon Fibre

Fixed

50.1

1300

1327

561

0.22

0.8

40.1

13.8

59

50

1400

1836

1274

0.44

2.2

110.0

11.7

60.3

49.9

1500

2393

2368

0.73

4.7

234.5

10.1

62.2

49.7

1600

2833

3465

1.02

8

397.6

8.7

63.7

49.4

1700

3219

4304

1.27

11.6

573.0

7.5

64.7

49.2

1800

3619

5336

1.58

16.3

802.0

6.6

64.3

48.8

1900

3951

6265

1.86

22.4

1093.1

5.7

62.3

48.7

1950

4056

6569

1.98

24.9

1212.6

5.4

59.7

48.7

2000

4044

6604

2.01

25

1217.5

5.4

57



Propeller

Voltage

PWM

RPM

Thrust (g)

Torque (N*m)

Current (A)

Electrical Power

Efficiency

Temperature (Celcius)

28*8.4"

CF Fixed

50.1

1300

1304

743

0.27

0.9

45.1

16.0

69.2

50

1400

1778

1428

0.49

2.3

115.0

12.5

71.7

49.8

1500

2318

2589

0.83

5.2

259.0

10.1

75.5

49.6

1600

2757

3619

1.15

8.8

436.5

8.3

78.6

49.3

1700

3108

4657

1.46

13

640.9

7.3

80.6

49

1800

3430

5693

1.77

18.5

906.5

6.3

81.6

48.6

1900

3689

6773

2.1

25.4

1234.4

5.5

79.1

48.4

1950

3763

7135

2.21

27.9

1350.4

5.3

74.6

48.4

2000

3764

7091

2.19

27.7

1340.7

5.3

69.2

Performance Data

Thrust Bench data with various propellers

Certifications

Standard Tests and Certifications

CAD FILES

2D / 3D CAD MODEL
