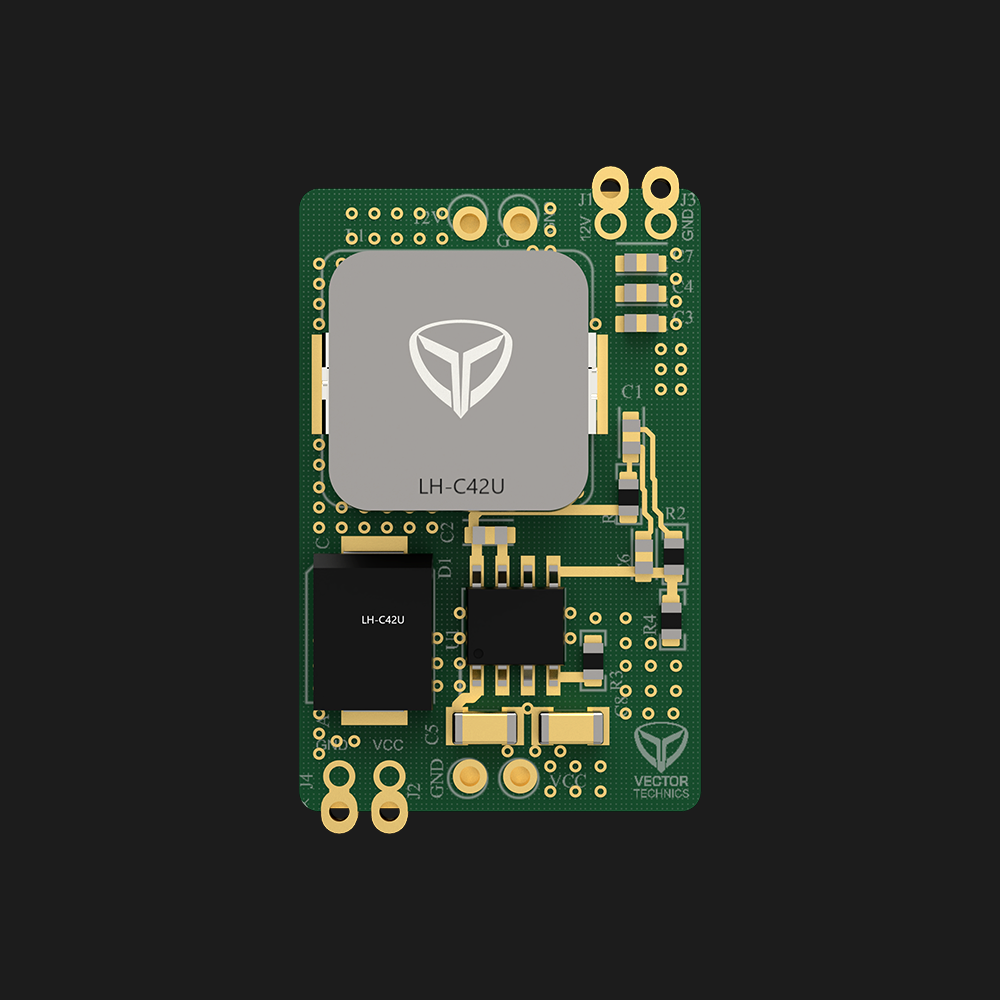

DC DC Converter - Voltrox 12V BEC
- Input Voltage Range: 15-100V
- Output Voltage: 12V
- Output Current: 2A
- Efficiency: 90.61%
- Full Load Current (@48V): 1.10A
- Size: 31x20x6.75 mm (LxBxH)
- Input Under Voltage Protection: <13.2V
- Short Circuit Current: 110 mA
DC DC Converter - Voltrox 12V BEC
Sale priceRs. 1,200.00
Product specification
Our VOLTROX DC-DC Converters, also known as Switching Regulators or BECs, are meticulously engineered for top-notch voltage regulation in UAV systems. Compact, lightweight, and durable, they guarantee efficient and reliable energy conversion. Universally compatible with a wide range of drone components, these converters are your perfect companion for efficient drone operation.
Input Voltage Range
15-100V DC
Output Voltage
12V DC
Full Load Current (@48v)
1.10A
Under Voltage Shutdown
13.2V or less
Short Circuit Current
110mA
Current Range
0-2A (Nominal) 3.4A (Max)
Power Dissipation
43.2W
Accuracy
±2% of VNom
Ripple And Noise
80-120mVp-p
Over Current Protection
Yes
Over Temperature Shutdown
After +130°C
Efficiency (%)
86-89%
Transient Response
75 sec
Operating Temperature Range
-40 to +125°C
Safety & EMI
Compliant
