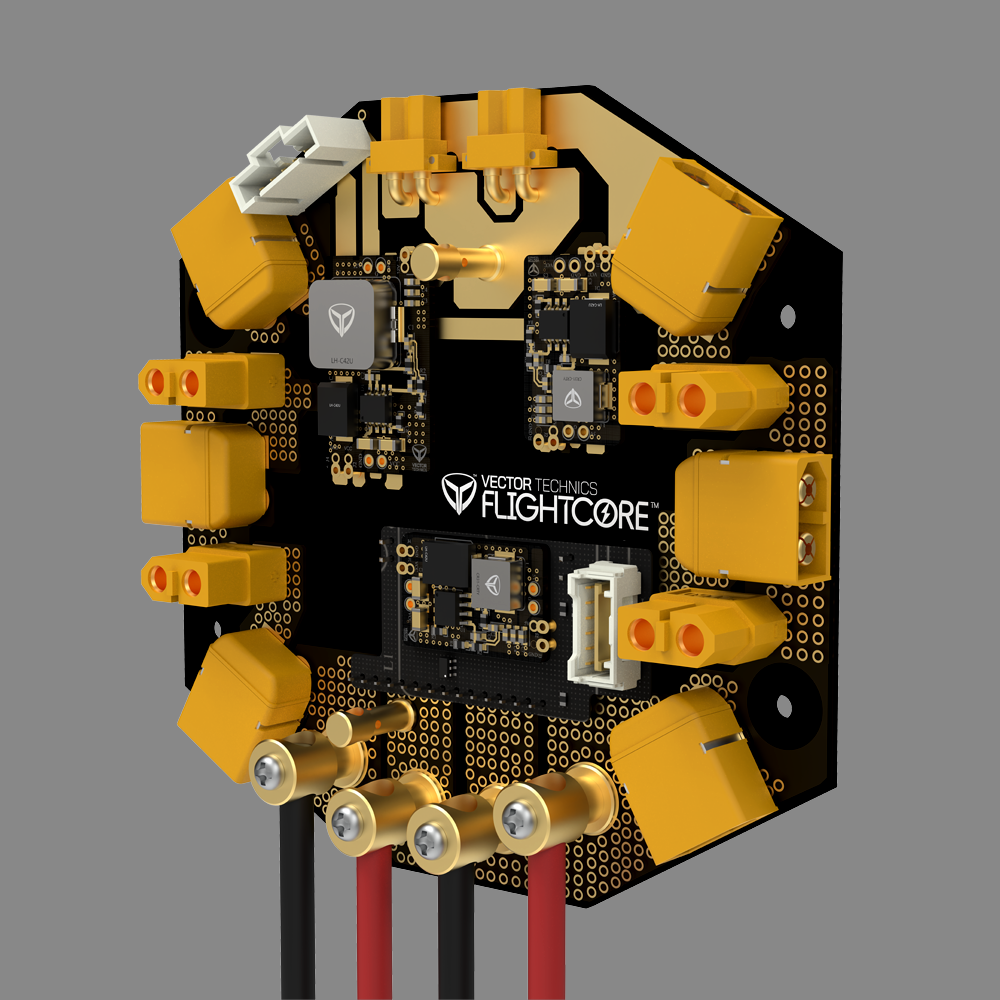

PDB - FLIGHTCORE MK2
- Voltage Range: 22.2V (6S LiPo) – 58.8V (14S LiPo)
- Robust PCB: 4 layers, temperature rated for 180°C continuous operation
- Protection: Overcurrent and short-circuit on 5V and 12V regulators
- Outputs: 6 x XT60 for motor ESCs, 4 x XT60 for payload, 2 x XT30 for auxiliary/payload
- Compact Size: Seamlessly integrates into any UAS
- Regulators: Modular switching, 12V and 5V BECs, 2A continuous current
PDB - FLIGHTCORE MK2
Sale priceRs. 18,000.00
product specifications
FLIGHTCORE is engineered with high-quality materials, designed to endure the toughest environments. It seamlessly integrates with any Unmanned Aerial System (UAS), replacing existing power distribution units with ease.
ELECTRIC CAPABILITIES
POWER MODULE
- Voltage Measurement (0-100V) analogue output x mV/V
- Current Measurement (0-100A) analogue output y mV/A
- DC-DC 5V BEC- 2A Continuous (For Flight Controller)
VOLTROX 5
- DC-DC 5V BEC- 2A Continuous
VOLTROX 12
- DC-DC 12V BEC- 2A Continuous
PHYSICAL PROPERTIES
- Max Temperature: 180°C
- Weight: 156 ±2 grams
- Mounting: 102mm x 49mm
- Size: 110mm x 116mm x 25mm (L x B x H)
Performance Data
Thrust Bench data with various propellers
Certifications
Standard Tests and Certifications
CAD FILES
2D / 3D CAD MODEL
