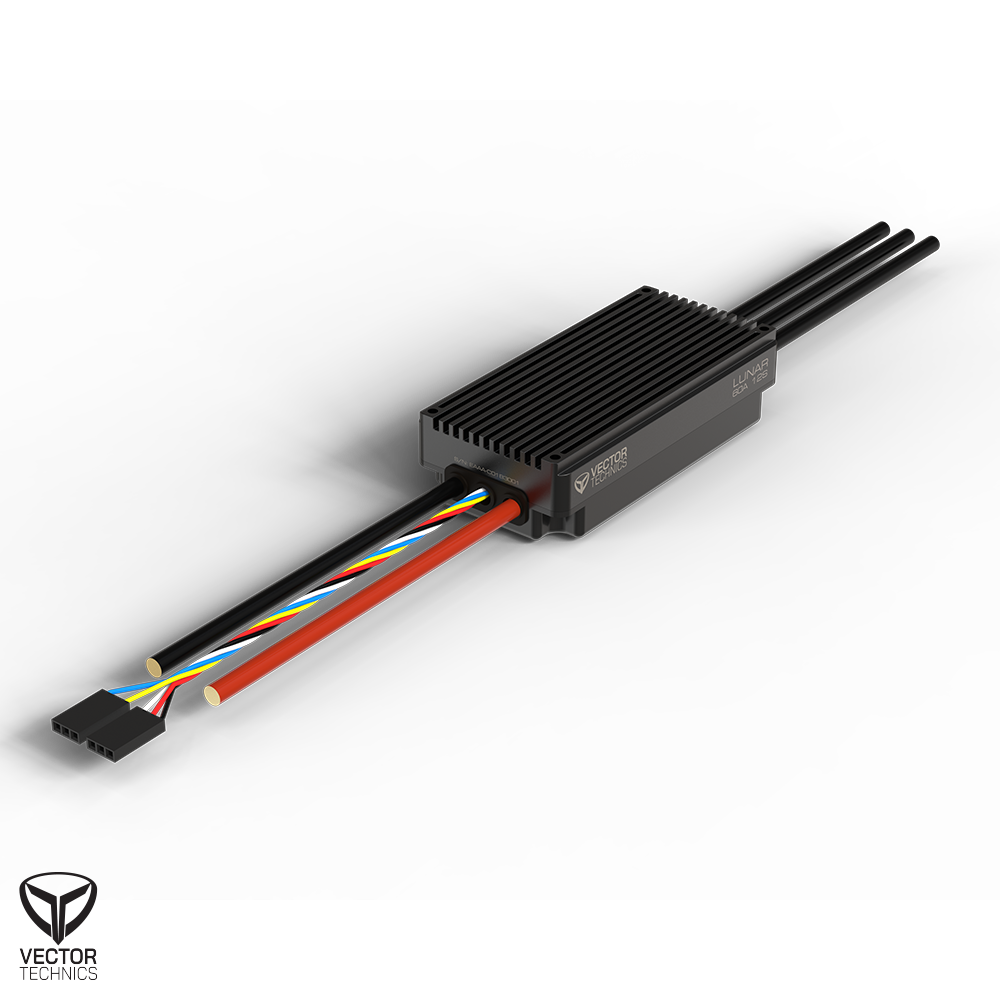

LUNAR PRO 60A 6S-12S ESC
Sale priceRs. 12,000.00
Regular price (/)
Product specifications
The LUNAR series boasts an all-aluminum 6061 case that offers thermal management and durability. It is IP56 certified for all-weather operation and can be used in harsh environments and industrial applications.
The series is pre-installed with the latest firmware. This Trapezoidal ESC provides precise control of brushless motors, essential for high-performance and stability-critical applications.
Voltage Range
22.2 V (6S LiPo) - 52.2 V (12S LiPo)
Max Continuous Current
60 A (180 s)
Max Peak Current
85 A (5 s)
MaxTemperature
100°C
Refresh Rate
500 Hz (50 - 500Hz Adaptive)
Internal BEC
No
ESC Weight
164gms (With Wires)
ESC Size
90mm (L) X 44mm (W) x 23mm (D)
CAD Drawings
